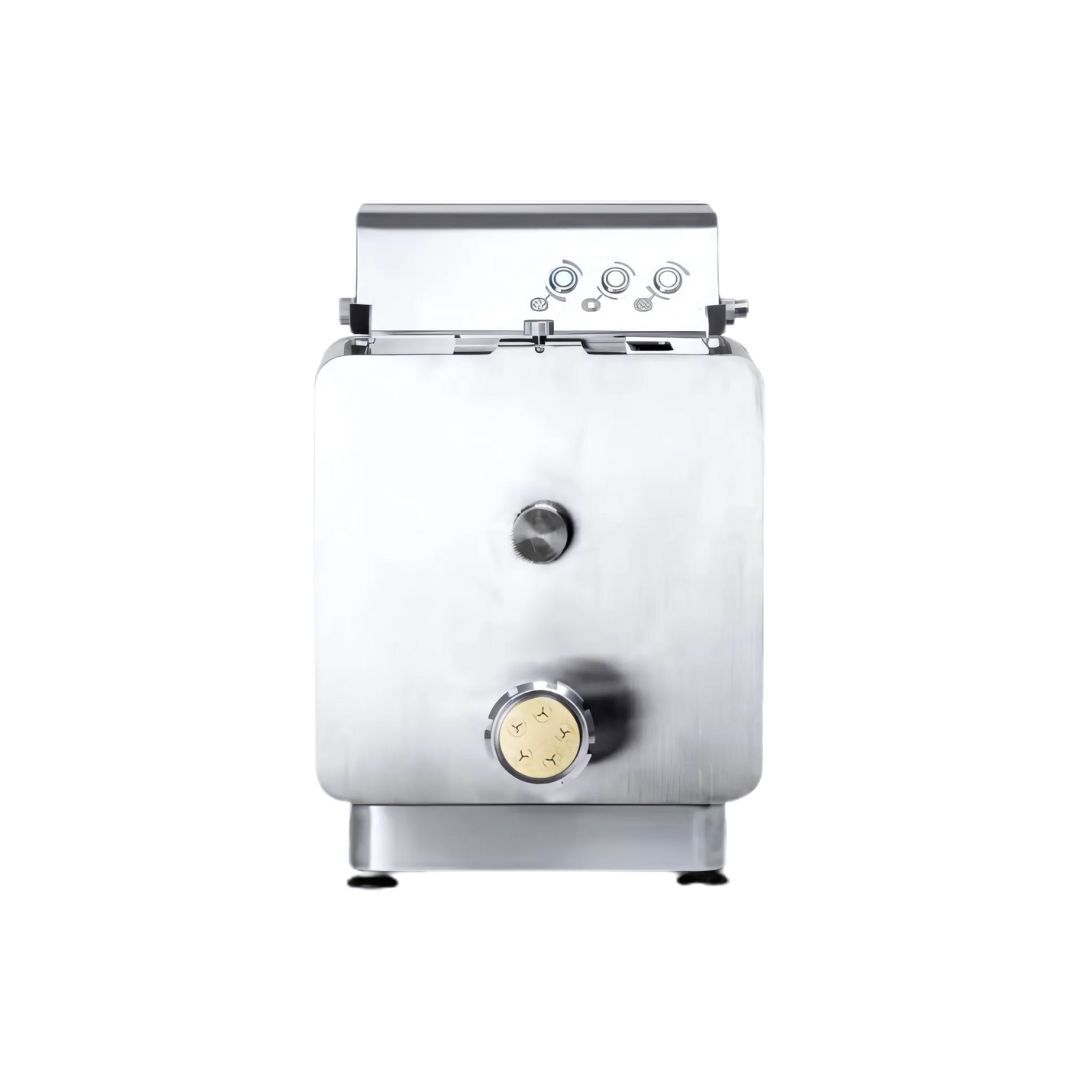

SWEDLINGHAUS PASTA MACHINE OPTIONS OF BOWL CAPACITY OF 4,6 & 8KG ~ PF104/106/08

SPECIFICATION

PF 104

• Dimensions: ~330 × 470 × 420 mm

• Power: 0.75 kW; three-phase 400V / 50 Hz

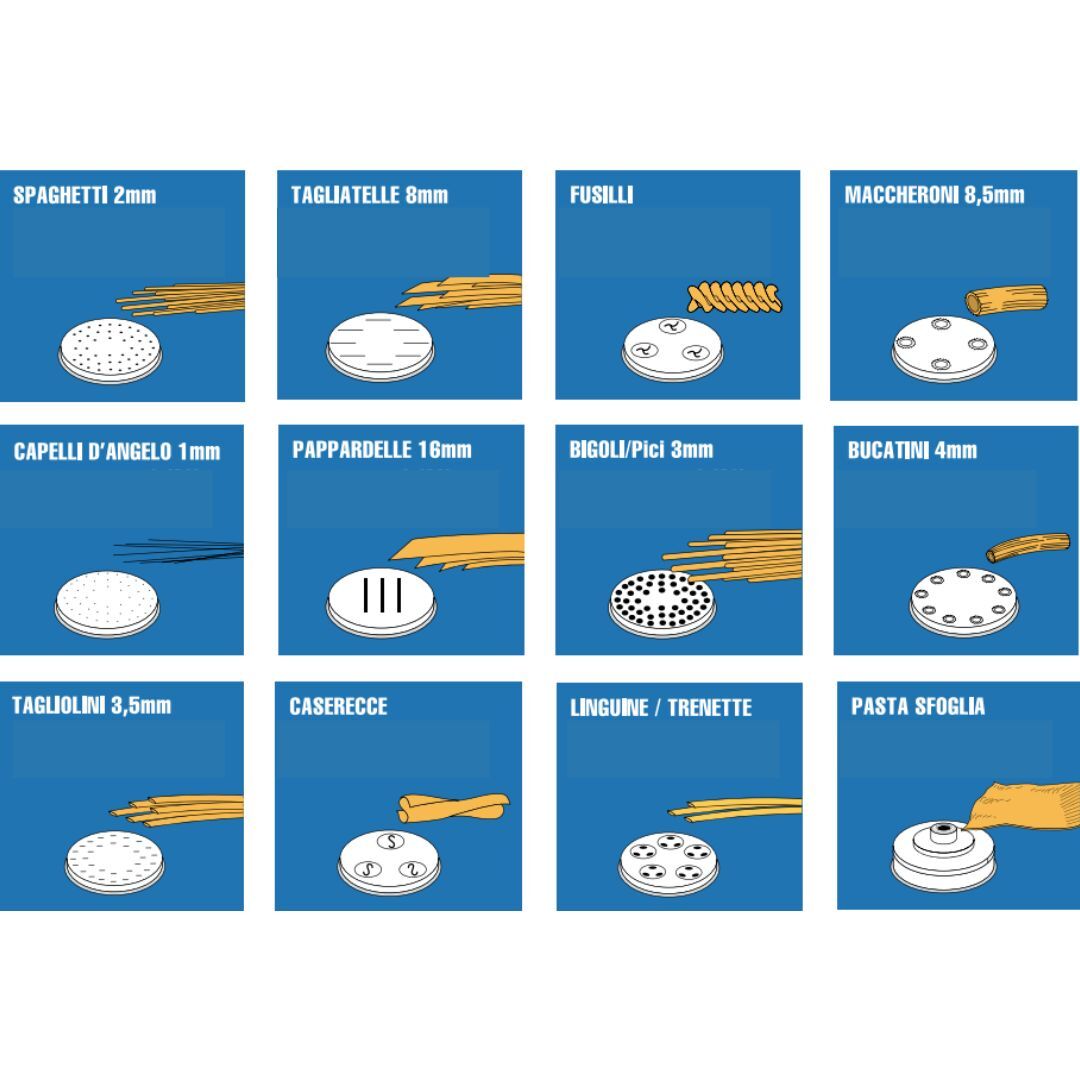

• Die diameter: Ø 63.5 mm

• Bowl capacity: 4 kg

• Hourly output: approx. 12–16 kg/h

• Weight: ~51.5 kg

• Packing dimensions: 450 × 550 × 510 mm
  (Values inferred based on the PF 106 & PF 108 progression; please confirm with manufacturer.)

PF 106

• Dimensions: 330 × 470 × 520 mm

• Power: 0.55 kW; three-phase 400 V / 50 Hz

• Die diameter: Ø 63.5 mm

• Bowl capacity: 6 kg

• Hourly output: 14–18 kg/h

• Weight: 53.5 kg

• Packing dimensions: 450 × 550 × 610 mm

PF 108

• Dimensions: 330 × 470 × 620 mm

• Power: 0.55 kW; three-phase 400 V / 50 Hz

• Die diameter: Ø 63.5 mm

• Bowl capacity: 8 kg

• Hourly output: 16–20 kg/h

• Weight: 57.5 kg

• Packing dimensions: 450 × 550 × 700 mm
